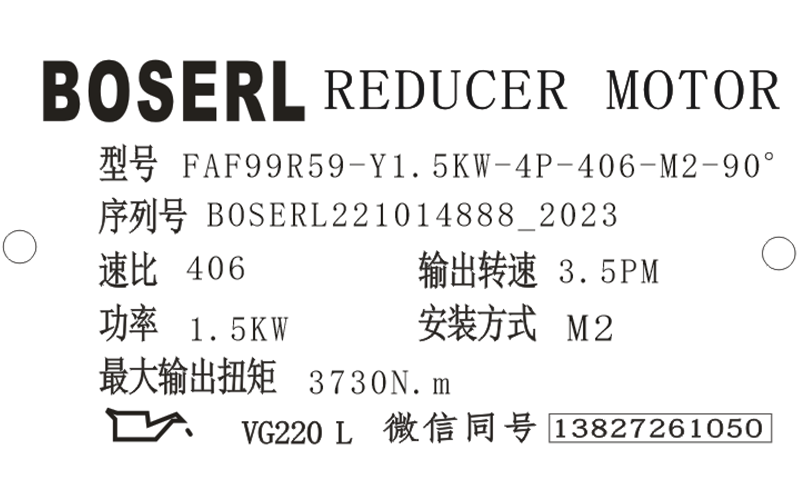

FAF99R59減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FAF99R59減速機選型樣本。

FAF99R59-Y1.5KW-4P-406-M2-90°

FAF/R：系列代號

99/59：減速機規格代號

Y：電機

1.5KW：電機功率

4P：電機級數

406：減速機傳動比

M2：減速機安裝位置

90°：接線盒位置

FAF99R59減速機電機接線操作圖：

電氣操作必須由合格的專業人員，在低壓設備斷電停機且不會意外重新啟動的前提條件下執行。對輔助電路（比如:外部風機）也如此。否則可能會有觸電或人員受傷的危險。齒輪減速電機

超出EN 60034-1標準（VDE0530標準第1部分）規定的公差（電壓+5%、頻率+2%）,會導致設備升溫并影響設備的電磁兼容性。各型號具體的接線圖以各電機銘牌上的為準。

將3根電源線的任意2根接線交換，將可改變三相電機的旋轉方向。平行軸斜齒輪減速機

以下為各類型電機各自的電氣接線圖：

一、FAF99R59減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式（無變頻器）

二、FAF99R59減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式（有變頻器）

三、FAF99R59減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式（無變頻器）

四、FAF99R59減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式（有變頻器）

五、FAF99R59減速機電機5.5KW以上三相電機及剎車器接線方式（無變頻器）

六、FAF99R59減速機電機5.5KW以上三相電機及剎車器接線方式（有變頻）變頻電機減速機

FAF99R59減速電機型號：

YQFAF97R57-Y0.12KW，YQFAF97R57-Y0.18KW，YQFAF97R57-Y0.25KW，YQFAF97R57-Y0.37KW，YQFAF97R57-Y0.55KW，YQFAF97R57-Y0.75KW，YQFAF97R57-Y1.1KW，YQFAF97R57-Y1.5KW，YQFAF97R57-Y100M4，YQFAF97R57-Y2.2KW，YQFAF97R57-Y63M4，YQFAF97R57-Y71M4，YQFAF97R57-Y80M4，YQFAF97R57-Y90M4，YQFAF97RF57-Y100M4，YQFAF97RF57-Y63M4，YQFAF97RF57-Y71M4，YQFAF97RF57-Y80M4，YQFAF97RF57-Y90M4，YQFAF97RF57-YB100L4，YQFAF97RF57-YB63M4，YQFAF97RF57-YB71M4，YQFAF97RF57-YB80M4，YQFAF97RF57-YB90S4，YQFAF97RF57-YDP100L4，YQFAF97RF57-YDP63M4，YQFAF97RF57-YDP71M4，YQFAF97RF57-YDP80M4，YQFAF97RF57-YDP90S4，YQFAF97RF57-YE100L4，YQFAF97RF57-YE63M4，YQFAF97RF57-YE71M4，YQFAF97RF57-YE80M4，YQFAF97RF57-YE90S4，YQFAF97RF57-YEJ100L4，YQFAF97RF57-YEJ63M4，YQFAF97RF57-YEJ71M4，YQFAF97RF57-YEJ80M4，YQFAF97RF57-YEJ90S4，YQFAF97RF57-YEJB100L4，YQFAF97RF57-YEJB63M4，YQFAF97RF57-YEJB71M4，YQFAF97RF57-YEJB80M4，YQFAF97RF57-YEJB90S4，YQFAF97RF57-YP100L4，YQFAF97RF57-YP63M4，YQFAF97RF57-YP71M4，YQFAF97RF57-YP80M4，YQFAF97RF57-YP90S4，YQFAF97RF57-YPB100L4，YQFAF97RF57-YPB63M4，YQFAF97RF57-YPB71M4，YQFAF97RF57-YPB80M4，YQFAF97RF57-YPB90S4，YQFAF97RF57-YPE100L4，YQFAF97RF57-YPE63M4，YQFAF97RF57-YPE71M4，YQFAF97RF57-YPE80M4，YQFAF97RF57-YPE90S4，YQFAF97RF57-YS100L4，YQFAF97RF57-YS63M4，YQFAF97RF57-YS71M4，YQFAF97RF57-YS80M4，YQFAF97RF57-YS90S4，YQFAF97RF57-YVB100L4，YQFAF97RF57-YVB63M4，YQFAF97RF57-YVB71M4，YQFAF97RF57-YVB80M4，YQFAF97RF57-YVB90S4，YQFAF97RF57-YVP100L4，YQFAF97RF57-YVP63M4，YQFAF97RF57-YVP71M4，YQFAF97RF57-YVP80M4，YQFAF97RF57-YVP90S4，YQFAF97RF57-YVPEJ100L4，YQFAF97RF57-YVPEJ63M4，YQFAF97RF57-YVPEJ71M4，YQFAF97RF57-YVPEJ80M4，YQFAF97RF57-YVPEJ90S4，NFAF97R57-Y0.12KW，NFAF97R57-Y0.18KW，NFAF97R57-Y0.25KW，NFAF97R57-Y0.37KW，NFAF97R57-Y0.55KW，NFAF97R57-Y0.75KW，NFAF97R57-Y1.1KW，NFAF97R57-Y1.5KW，NFAF97R57-Y100M4，NFAF97R57-Y2.2KW，NFAF97R57-Y63M4，NFAF97R57-Y71M4，NFAF97R57-Y80M4，NFAF97R57-Y90M4，NFAF97RF57-Y100M4，NFAF97RF57-Y63M4，NFAF97RF57-Y71M4，NFAF97RF57-Y80M4，NFAF97RF57-Y90M4，NFAF97RF57-YB100L4，NFAF97RF57-YB63M4，NFAF97RF57-YB71M4，NFAF97RF57-YB80M4，NFAF97RF57-YB90S4，NFAF97RF57-YDP100L4，NFAF97RF57-YDP63M4，NFAF97RF57-YDP71M4，NFAF97RF57-YDP80M4，NFAF97RF57-YDP90S4，NFAF97RF57-YE100L4，NFAF97RF57-YE63M4，NFAF97RF57-YE71M4，NFAF97RF57-YE80M4，NFAF97RF57-YE90S4，NFAF97RF57-YEJ100L4，NFAF97RF57-YEJ63M4，NFAF97RF57-YEJ71M4，NFAF97RF57-YEJ80M4，NFAF97RF57-YEJ90S4，NFAF97RF57-YEJB100L4，NFAF97RF57-YEJB63M4，NFAF97RF57-YEJB71M4，NFAF97RF57-YEJB80M4，NFAF97RF57-YEJB90S4，NFAF97RF57-YP100L4，NFAF97RF57-YP63M4，NFAF97RF57-YP71M4，NFAF97RF57-YP80M4，NFAF97RF57-YP90S4，NFAF97RF57-YPB100L4，NFAF97RF57-YPB63M4，NFAF97RF57-YPB71M4，NFAF97RF57-YPB80M4，NFAF97RF57-YPB90S4，NFAF97RF57-YPE100L4，NFAF97RF57-YPE63M4，NFAF97RF57-YPE71M4，NFAF97RF57-YPE80M4，NFAF97RF57-YPE90S4，NFAF97RF57-YS100L4，NFAF97RF57-YS63M4，NFAF97RF57-YS71M4，NFAF97RF57-YS80M4，NFAF97RF57-YS90S4，NFAF97RF57-YVB100L4，NFAF97RF57-YVB63M4，NFAF97RF57-YVB71M4，NFAF97RF57-YVB80M4，NFAF97RF57-YVB90S4，NFAF97RF57-YVP100L4，NFAF97RF57-YVP63M4，NFAF97RF57-YVP71M4，NFAF97RF57-YVP80M4，NFAF97RF57-YVP90S4，NFAF97RF57-YVPEJ100L4，NFAF97RF57-YVPEJ63M4，NFAF97RF57-YVPEJ71M4，NFAF97RF57-YVPEJ80M4，NFAF97RF57-YVPEJ90S4，XDFAF97R57-Y0.12KW，XDFAF97R57-Y0.18KW，XDFAF97R57-Y0.25KW，XDFAF97R57-Y0.37KW，XDFAF97R57-Y0.55KW，XDFAF97R57-Y0.75KW，XDFAF97R57-Y1.1KW，XDFAF97R57-Y1.5KW，XDFAF97R57-Y100M4，XDFAF97R57-Y2.2KW，XDFAF97R57-Y63M4，XDFAF97R57-Y71M4，XDFAF97R57-Y80M4，XDFAF97R57-Y90M4，XDFAF97RF57-Y100M4，XDFAF97RF57-Y63M4，XDFAF97RF57-Y71M4，XDFAF97RF57-Y80M4，XDFAF97RF57-Y90M4，XDFAF97RF57-YB100L4，XDFAF97RF57-YB63M4，XDFAF97RF57-YB71M4，XDFAF97RF57-YB80M4，XDFAF97RF57-YB90S4，XDFAF97RF57-YDP100L4，XDFAF97RF57-YDP63M4，XDFAF97RF57-YDP71M4，XDFAF97RF57-YDP80M4，XDFAF97RF57-YDP90S4，XDFAF97RF57-YE100L4，XDFAF97RF57-YE63M4，XDFAF97RF57-YE71M4，XDFAF97RF57-YE80M4，XDFAF97RF57-YE90S4，XDFAF97RF57-YEJ100L4，XDFAF97RF57-YEJ63M4，XDFAF97RF57-YEJ71M4，XDFAF97RF57-YEJ80M4，XDFAF97RF57-YEJ90S4，XDFAF97RF57-YEJB100L4，XDFAF97RF57-YEJB63M4，XDFAF97RF57-YEJB71M4，XDFAF97RF57-YEJB80M4，XDFAF97RF57-YEJB90S4，XDFAF97RF57-YP100L4，XDFAF97RF57-YP63M4，XDFAF97RF57-YP71M4，XDFAF97RF57-YP80M4，XDFAF97RF57-YP90S4，XDFAF97RF57-YPB100L4，XDFAF97RF57-YPB63M4，XDFAF97RF57-YPB71M4，XDFAF97RF57-YPB80M4，XDFAF97RF57-YPB90S4，XDFAF97RF57-YPE100L4，XDFAF97RF57-YPE63M4，XDFAF97RF57-YPE71M4，XDFAF97RF57-YPE80M4，XDFAF97RF57-YPE90S4，XDFAF97RF57-YS100L4，XDFAF97RF57-YS63M4，XDFAF97RF57-YS71M4，XDFAF97RF57-YS80M4，XDFAF97RF57-YS90S4，XDFAF97RF57-YVB100L4，XDFAF97RF57-YVB63M4，XDFAF97RF57-YVB71M4，XDFAF97RF57-YVB80M4，XDFAF97RF57-YVB90S4，XDFAF97RF57-YVP100L4，XDFAF97RF57-YVP63M4，XDFAF97RF57-YVP71M4，XDFAF97RF57-YVP80M4，XDFAF97RF57-YVP90S4，XDFAF97RF57-YVPEJ100L4，XDFAF97RF57-YVPEJ63M4，XDFAF97RF57-YVPEJ71M4，XDFAF97RF57-YVPEJ80M4，XDFAF97RF57-YVPEJ90S4，JCFAF97R57-Y0.12KW，JCFAF97R57-Y0.18KW，JCFAF97R57-Y0.25KW，JCFAF97R57-Y0.37KW，JCFAF97R57-Y0.55KW，JCFAF97R57-Y0.75KW，JCFAF97R57-Y1.1KW，JCFAF97R57-Y1.5KW，JCFAF97R57-Y100M4，JCFAF97R57-Y2.2KW，JCFAF97R57-Y63M4，JCFAF97R57-Y71M4，JCFAF97R57-Y80M4，JCFAF97R57-Y90M4，JCFAF97RF57-Y100M4，JCFAF97RF57-Y63M4，JCFAF97RF57-Y71M4，JCFAF97RF57-Y80M4，JCFAF97RF57-Y90M4，JCFAF97RF57-YB100L4，JCFAF97RF57-YB63M4，JCFAF97RF57-YB71M4，JCFAF97RF57-YB80M4，JCFAF97RF57-YB90S4，JCFAF97RF57-YDP100L4，JCFAF97RF57-YDP63M4，JCFAF97RF57-YDP71M4，JCFAF97RF57-YDP80M4，JCFAF97RF57-YDP90S4，JCFAF97RF57-YE100L4，JCFAF97RF57-YE63M4，JCFAF97RF57-YE71M4，JCFAF97RF57-YE80M4，JCFAF97RF57-YE90S4，JCFAF97RF57-YEJ100L4，JCFAF97RF57-YEJ63M4，JCFAF97RF57-YEJ71M4，JCFAF97RF57-YEJ80M4，JCFAF97RF57-YEJ90S4，JCFAF97RF57-YEJB100L4，JCFAF97RF57-YEJB63M4，JCFAF97RF57-YEJB71M4，JCFAF97RF57-YEJB80M4，JCFAF97RF57-YEJB90S4，JCFAF97RF57-YP100L4，JCFAF97RF57-YP63M4，JCFAF97RF57-YP71M4，JCFAF97RF57-YP80M4，JCFAF97RF57-YP90S4，JCFAF97RF57-YPB100L4，JCFAF97RF57-YPB63M4，JCFAF97RF57-YPB71M4，JCFAF97RF57-YPB80M4，JCFAF97RF57-YPB90S4，JCFAF97RF57-YPE100L4，JCFAF97RF57-YPE63M4，JCFAF97RF57-YPE71M4，JCFAF97RF57-YPE80M4，JCFAF97RF57-YPE90S4，JCFAF97RF57-YS100L4，JCFAF97RF57-YS63M4，JCFAF97RF57-YS71M4，JCFAF97RF57-YS80M4，JCFAF97RF57-YS90S4，JCFAF97RF57-YVB100L4，JCFAF97RF57-YVB63M4，JCFAF97RF57-YVB71M4，JCFAF97RF57-YVB80M4，JCFAF97RF57-YVB90S4，JCFAF97RF57-YVP100L4，JCFAF97RF57-YVP63M4，JCFAF97RF57-YVP71M4，JCFAF97RF57-YVP80M4，JCFAF97RF57-YVP90S4，JCFAF97RF57-YVPEJ100L4，JCFAF97RF57-YVPEJ63M4，JCFAF97RF57-YVPEJ71M4，JCFAF97RF57-YVPEJ80M4，JCFAF97RF57-YVPEJ90S4，WFAF97R57-Y0.12KW，WFAF97R57-Y0.18KW，WFAF97R57-Y0.25KW，WFAF97R57-Y0.37KW，WFAF97R57-Y0.55KW，WFAF97R57-Y0.75KW，WFAF97R57-Y1.1KW，WFAF97R57-Y1.5KW，WFAF97R57-Y100M4，WFAF97R57-Y2.2KW，WFAF97R57-Y63M4，WFAF97R57-Y71M4，WFAF97R57-Y80M4，WFAF97R57-Y90M4，WFAF97RF57-Y100M4，WFAF97RF57-Y63M4，WFAF97RF57-Y71M4，WFAF97RF57-Y80M4，WFAF97RF57-Y90M4，WFAF97RF57-YB100L4，WFAF97RF57-YB63M4，WFAF97RF57-YB71M4，WFAF97RF57-YB80M4，WFAF97RF57-YB90S4，WFAF97RF57-YDP100L4，WFAF97RF57-YDP63M4，WFAF97RF57-YDP71M4，WFAF97RF57-YDP80M4，WFAF97RF57-YDP90S4，WFAF97RF57-YE100L4，WFAF97RF57-YE63M4，WFAF97RF57-YE71M4，WFAF97RF57-YE80M4，WFAF97RF57-YE90S4，WFAF97RF57-YEJ100L4，WFAF97RF57-YEJ63M4，WFAF97RF57-YEJ71M4，WFAF97RF57-YEJ80M4，WFAF97RF57-YEJ90S4，WFAF97RF57-YEJB100L4，WFAF97RF57-YEJB63M4，WFAF97RF57-YEJB71M4，WFAF97RF57-YEJB80M4，WFAF97RF57-YEJB90S4，WFAF97RF57-YP100L4，WFAF97RF57-YP63M4，WFAF97RF57-YP71M4，WFAF97RF57-YP80M4，WFAF97RF57-YP90S4，WFAF97RF57-YPB100L4，WFAF97RF57-YPB63M4，WFAF97RF57-YPB71M4，WFAF97RF57-YPB80M4，WFAF97RF57-YPB90S4，WFAF97RF57-YPE100L4，WFAF97RF57-YPE63M4，WFAF97RF57-YPE71M4，WFAF97RF57-YPE80M4，WFAF97RF57-YPE90S4，WFAF97RF57-YS100L4，WFAF97RF57-YS63M4，WFAF97RF57-YS71M4，WFAF97RF57-YS80M4，WFAF97RF57-YS90S4，WFAF97RF57-YVB100L4，WFAF97RF57-YVB63M4，WFAF97RF57-YVB71M4，WFAF97RF57-YVB80M4，WFAF97RF57-YVB90S4，WFAF97RF57-YVP100L4，WFAF97RF57-YVP63M4，WFAF97RF57-YVP71M4，WFAF97RF57-YVP80M4，WFAF97RF57-YVP90S4，WFAF97RF57-YVPEJ100L4，WFAF97RF57-YVPEJ63M4，WFAF97RF57-YVPEJ71M4，WFAF97RF57-YVPEJ80M4，WFAF97RF57-YVPEJ90S4，SFAF97R57-Y0.12KW，SFAF97R57-Y0.18KW，SFAF97R57-Y0.25KW，SFAF97R57-Y0.37KW，SFAF97R57-Y0.55KW，SFAF97R57-Y0.75KW，SFAF97R57-Y1.1KW，SFAF97R57-Y1.5KW，SFAF97R57-Y100M4，SFAF97R57-Y2.2KW，SFAF97R57-Y63M4，SFAF97R57-Y71M4，SFAF97R57-Y80M4，SFAF97R57-Y90M4，SFAF97RF57-Y100M4，SFAF97RF57-Y63M4，SFAF97RF57-Y71M4，SFAF97RF57-Y80M4，SFAF97RF57-Y90M4，SFAF97RF57-YB100L4，SFAF97RF57-YB63M4，SFAF97RF57-YB71M4，SFAF97RF57-YB80M4，SFAF97RF57-YB90S4，SFAF97RF57-YDP100L4，SFAF97RF57-YDP63M4，SFAF97RF57-YDP71M4，SFAF97RF57-YDP80M4，SFAF97RF57-YDP90S4，SFAF97RF57-YE100L4，SFAF97RF57-YE63M4，SFAF97RF57-YE71M4，SFAF97RF57-YE80M4，SFAF97RF57-YE90S4，SFAF97RF57-YEJ100L4，SFAF97RF57-YEJ63M4，SFAF97RF57-YEJ71M4，SFAF97RF57-YEJ80M4，SFAF97RF57-YEJ90S4，SFAF97RF57-YEJB100L4，SFAF97RF57-YEJB63M4，SFAF97RF57-YEJB71M4，SFAF97RF57-YEJB80M4，SFAF97RF57-YEJB90S4，SFAF97RF57-YP100L4，SFAF97RF57-YP63M4，SFAF97RF57-YP71M4，SFAF97RF57-YP80M4，SFAF97RF57-YP90S4，SFAF97RF57-YPB100L4，SFAF97RF57-YPB63M4，SFAF97RF57-YPB71M4，SFAF97RF57-YPB80M4，SFAF97RF57-YPB90S4，SFAF97RF57-YPE100L4，SFAF97RF57-YPE63M4，SFAF97RF57-YPE71M4，SFAF97RF57-YPE80M4，SFAF97RF57-YPE90S4，SFAF97RF57-YS100L4，SFAF97RF57-YS63M4，SFAF97RF57-YS71M4，SFAF97RF57-YS80M4，SFAF97RF57-YS90S4，SFAF97RF57-YVB100L4，SFAF97RF57-YVB63M4，SFAF97RF57-YVB71M4，SFAF97RF57-YVB80M4，SFAF97RF57-YVB90S4，SFAF97RF57-YVP100L4，SFAF97RF57-YVP63M4，SFAF97RF57-YVP71M4，SFAF97RF57-YVP80M4，SFAF97RF57-YVP90S4，SFAF97RF57-YVPEJ100L4，SFAF97RF57-YVPEJ63M4，SFAF97RF57-YVPEJ71M4，SFAF97RF57-YVPEJ80M4，SFAF97RF57-YVPEJ90S4，AFAF97R57-Y0.12KW，AFAF97R57-Y0.18KW，AFAF97R57-Y0.25KW，AFAF97R57-Y0.37KW，AFAF97R57-Y0.55KW，AFAF97R57-Y0.75KW，AFAF97R57-Y1.1KW，AFAF97R57-Y1.5KW，AFAF97R57-Y100M4，AFAF97R57-Y2.2KW，AFAF97R57-Y63M4，AFAF97R57-Y71M4，AFAF97R57-Y80M4，AFAF97R57-Y90M4，AFAF97RF57-Y100M4，AFAF97RF57-Y63M4，AFAF97RF57-Y71M4，AFAF97RF57-Y80M4，AFAF97RF57-Y90M4，AFAF97RF57-YB100L4，AFAF97RF57-YB63M4，AFAF97RF57-YB71M4，AFAF97RF57-YB80M4，AFAF97RF57-YB90S4，AFAF97RF57-YDP100L4，AFAF97RF57-YDP63M4，AFAF97RF57-YDP71M4，AFAF97RF57-YDP80M4，AFAF97RF57-YDP90S4，AFAF97RF57-YE100L4，AFAF97RF57-YE63M4，AFAF97RF57-YE71M4，AFAF97RF57-YE80M4，AFAF97RF57-YE90S4，AFAF97RF57-YEJ100L4，AFAF97RF57-YEJ63M4，AFAF97RF57-YEJ71M4，AFAF97RF57-YEJ80M4，AFAF97RF57-YEJ90S4，AFAF97RF57-YEJB100L4，AFAF97RF57-YEJB63M4，AFAF97RF57-YEJB71M4，AFAF97RF57-YEJB80M4，AFAF97RF57-YEJB90S4，AFAF97RF57-YP100L4，AFAF97RF57-YP63M4，AFAF97RF57-YP71M4，AFAF97RF57-YP80M4，AFAF97RF57-YP90S4，AFAF97RF57-YPB100L4，AFAF97RF57-YPB63M4，AFAF97RF57-YPB71M4，AFAF97RF57-YPB80M4，AFAF97RF57-YPB90S4，AFAF97RF57-YPE100L4，AFAF97RF57-YPE63M4，AFAF97RF57-YPE71M4，AFAF97RF57-YPE80M4，AFAF97RF57-YPE90S4，AFAF97RF57-YS100L4，AFAF97RF57-YS63M4，AFAF97RF57-YS71M4，AFAF97RF57-YS80M4，AFAF97RF57-YS90S4，AFAF97RF57-YVB100L4，AFAF97RF57-YVB63M4，AFAF97RF57-YVB71M4，AFAF97RF57-YVB80M4，AFAF97RF57-YVB90S4，AFAF97RF57-YVP100L4，AFAF97RF57-YVP63M4，AFAF97RF57-YVP71M4，AFAF97RF57-YVP80M4，AFAF97RF57-YVP90S4，AFAF97RF57-YVPEJ100L4，AFAF97RF57-YVPEJ63M4，AFAF97RF57-YVPEJ71M4，AFAF97RF57-YVPEJ80M4，AFAF97RF57-YVPEJ90S4，FWAF97RW57-Y0.12KW，FWAF97RW57-Y0.18KW，FWAF97RW57-Y0.25KW，FWAF97RW57-Y0.37KW，FWAF97RW57-Y0.55KW，FWAF97RW57-Y0.75KW，FWAF97RW57-Y1.1KW，FWAF97RW57-Y1.5KW，FWAF97RW57-Y100M4，FWAF97RW57-Y2.2KW，FWAF97RW57-Y63M4，FWAF97RW57-Y71M4，FWAF97RW57-Y80M4，FWAF97RW57-Y90M4，FWAF97RWFAF57-Y100M4，FWAF97RWFAF57-Y63M4，FWAF97RWFAF57-Y71M4，FWAF97RWFAF57-Y80M4，FWAF97RWFAF57-Y90M4，FWAF97RWFAF57-YB100L4，FWAF97RWFAF57-YB63M4，FWAF97RWFAF57-YB71M4，FWAF97RWFAF57-YB80M4，FWAF97RWFAF57-YB90S4，FWAF97RWFAF57-YDP100L4，FWAF97RWFAF57-YDP63M4，FWAF97RWFAF57-YDP71M4，FWAF97RWFAF57-YDP80M4，FWAF97RWFAF57-YDP90S4，FWAF97RWFAF57-YE100L4，FWAF97RWFAF57-YE63M4，FWAF97RWFAF57-YE71M4，FWAF97RWFAF57-YE80M4，FWAF97RWFAF57-YE90S4，FWAF97RWFAF57-YEJ100L4，FWAF97RWFAF57-YEJ63M4，FWAF97RWFAF57-YEJ71M4，FWAF97RWFAF57-YEJ80M4，FWAF97RWFAF57-YEJ90S4，FWAF97RWFAF57-YEJB100L4，FWAF97RWFAF57-YEJB63M4，FWAF97RWFAF57-YEJB71M4，FWAF97RWFAF57-YEJB80M4，FWAF97RWFAF57-YEJB90S4，FWAF97RWFAF57-YP100L4，FWAF97RWFAF57-YP63M4，FWAF97RWFAF57-YP71M4，FWAF97RWFAF57-YP80M4，FWAF97RWFAF57-YP90S4，FWAF97RWFAF57-YPB100L4，FWAF97RWFAF57-YPB63M4，FWAF97RWFAF57-YPB71M4，FWAF97RWFAF57-YPB80M4，FWAF97RWFAF57-YPB90S4，FWAF97RWFAF57-YPE100L4，FWAF97RWFAF57-YPE63M4，FWAF97RWFAF57-YPE71M4，FWAF97RWFAF57-YPE80M4，FWAF97RWFAF57-YPE90S4，FWAF97RWFAF57-YS100L4，FWAF97RWFAF57-YS63M4，FWAF97RWFAF57-YS71M4，FWAF97RWFAF57-YS80M4，FWAF97RWFAF57-YS90S4，FWAF97RWFAF57-YVB100L4，FWAF97RWFAF57-YVB63M4，FWAF97RWFAF57-YVB71M4，FWAF97RWFAF57-YVB80M4，FWAF97RWFAF57-YVB90S4，FWAF97RWFAF57-YVP100L4，FWAF97RWFAF57-YVP63M4，FWAF97RWFAF57-YVP71M4，FWAF97RWFAF57-YVP80M4，FWAF97RWFAF57-YVP90S4，FWAF97RWFAF57-YVPEJ100L4，FWAF97RWFAF57-YVPEJ63M4，FWAF97RWFAF57-YVPEJ71M4，FWAF97RWFAF57-YVPEJ80M4，FWAF97RWFAF57-YVPEJ90S4，FAF99R59-Y0.12KW，FAF99R59-Y0.18KW，FAF99R59-Y0.25KW，FAF99R59-Y0.37KW，FAF99R59-Y0.55KW，FAF99R59-Y0.75KW，FAF99R59-Y1.1KW，FAF99R59-Y1.5KW，FAF99R59-Y100M4，FAF99R59-Y2.2KW，FAF99R59-Y63M4，FAF99R59-Y71M4，FAF99R59-Y80M4，FAF99R59-Y90M4，FAF99RF59-Y100M4，FAF99RF59-Y63M4，FAF99RF59-Y71M4，FAF99RF59-Y80M4，FAF99RF59-Y90M4，FAF99RF59-YB100L4，FAF99RF59-YB63M4，FAF99RF59-YB71M4，FAF99RF59-YB80M4，FAF99RF59-YB90S4，FAF99RF59-YDP100L4，FAF99RF59-YDP63M4，FAF99RF59-YDP71M4，FAF99RF59-YDP80M4，FAF99RF59-YDP90S4，FAF99RF59-YE100L4，FAF99RF59-YE63M4，FAF99RF59-YE71M4，FAF99RF59-YE80M4，FAF99RF59-YE90S4，FAF99RF59-YEJ100L4，FAF99RF59-YEJ63M4，FAF99RF59-YEJ71M4，FAF99RF59-YEJ80M4，FAF99RF59-YEJ90S4，FAF99RF59-YEJB100L4，FAF99RF59-YEJB63M4，FAF99RF59-YEJB71M4，FAF99RF59-YEJB80M4，FAF99RF59-YEJB90S4，FAF99RF59-YP100L4，FAF99RF59-YP63M4，FAF99RF59-YP71M4，FAF99RF59-YP80M4，FAF99RF59-YP90S4，FAF99RF59-YPB100L4，FAF99RF59-YPB63M4，FAF99RF59-YPB71M4，FAF99RF59-YPB80M4，FAF99RF59-YPB90S4，FAF99RF59-YPE100L4，FAF99RF59-YPE63M4，FAF99RF59-YPE71M4，FAF99RF59-YPE80M4，FAF99RF59-YPE90S4，FAF99RF59-YS100L4，FAF99RF59-YS63M4，FAF99RF59-YS71M4，FAF99RF59-YS80M4，FAF99RF59-YS90S4，FAF99RF59-YVB100L4，FAF99RF59-YVB63M4，FAF99RF59-YVB71M4，FAF99RF59-YVB80M4，FAF99RF59-YVB90S4，FAF99RF59-YVP100L4，FAF99RF59-YVP63M4，FAF99RF59-YVP71M4，FAF99RF59-YVP80M4，FAF99RF59-YVP90S4，FAF99RF59-YVPEJ100L4，FAF99RF59-YVPEJ63M4，FAF99RF59-YVPEJ71M4，FAF99RF59-YVPEJ80M4，FAF99RF59-YVPEJ90S4。

FAF99R59減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.jiohu.cn/product/list-fafxiliejiansuji-cn.html

推薦型號：F99減速機
