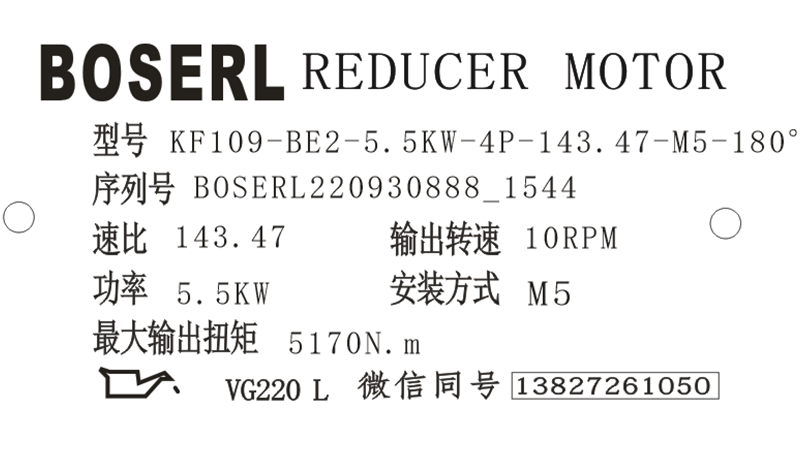

KF109減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KF109減速器選型樣本。

KF109-BE2-5.5KW-4P-143.47-M5-180°

KF：系列代號

109：減速機規格代號

BE2：電機

5.5KW：電機功率

4P：電機級數

143.47：減速機傳動比

M5：減速機安裝位置

180°：接線盒位置

KF109減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動KF109減速器前拆下透氣閥的運輸保險！齒輪減速電機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

KF109減速器安裝操作的正確方法：

KF109減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

KF109減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的KF109減速器選型樣本”）。直角減速機

KF109減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。

KF109減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列KF109減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的KF109減速器，啟動KF109減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。伺服電機減速機

KF109減速器型號：

KWF107-Y100M4，KWF107-Y112M4，KWF107-Y11KWF，KWF107-Y132M4，KWF107-Y15KWF，KWF107-Y160M4，KWF107-Y18.5KWF，KWF107-Y180M4，KWF107-Y200M4，KWF107-Y225M4，KWF107-Y22KWF，KWF107-Y30KWF，KWF107-Y37KWF，KWF107-Y3KWF，KWF107-Y45KWF，KWF107-Y4KWF，KWF107-Y5.5KWF，KWF107-Y7.5KWF，KWF107-YB100M4，KWF107-YB112M4，KWF107-YB132M4，KWF107-YB160M4，KWF107-YB180M4，KWF107-YB200M4，KWF107-YB225M4，KWF107-YDP100M4，KWF107-YDP112M4，KWF107-YDP132M4，KWF107-YDP160M4，KWF107-YDP180M4，KWF107-YDP200M4，KWF107-YDP225M4，KWF107-YE100M4，KWF107-YE112M4，KWF107-YE132M4，KWF107-YE160M4，KWF107-YE180M4，KWF107-YE200M4，KWF107-YE225M4，KWF107-YEJ100M4，KWF107-YEJ112M4，KWF107-YEJ132M4，KWF107-YEJ160M4，KWF107-YEJ180M4，KWF107-YEJ200M4，KWF107-YEJ225M4，KWF107-YEJB100M4，KWF107-YEJB112M4，KWF107-YEJB132M4，KWF107-YEJB160M4，KWF107-YEJB180M4，KWF107-YEJB200M4，KWF107-YEJB225M4，KWF107-YP100M4，KWF107-YP112M4，KWF107-YP132M4，KWF107-YP160M4，KWF107-YP180M4，KWF107-YP200M4，KWF107-YP225M4，KWF107-YPB100M4，KWF107-YPB112M4，KWF107-YPB132M4，KWF107-YPB160M4，KWF107-YPB180M4，KWF107-YPB200M4，KWF107-YPB225M4，KWF107-YPE100M4，KWF107-YPE112M4，KWF107-YPE132M4，KWF107-YPE160M4，KWF107-YPE180M4，KWF107-YPE200M4，KWF107-YPE225M4，KWF107-YS100M4，KWF107-YS112M4，KWF107-YS132M4，KWF107-YS160M4，KWF107-YS180M4，KWF107-YS200M4，KWF107-YS225M4，KWF107-YVB100M4，KWF107-YVB112M4，KWF107-YVB132M4，KWF107-YVB160M4，KWF107-YVB180M4，KWF107-YVB200M4，KWF107-YVB225M4，KWF107-YVP100M4，KWF107-YVP112M4，KWF107-YVP132M4，KWF107-YVP160M4，KWF107-YVP180M4，KWF107-YVP200M4，KWF107-YVP225M4，KWF107-YVPEJ100M4，KWF107-YVPEJ112M4，KWF107-YVPEJ132M4，KWF107-YVPEJ160M4，KWF107-YVPEJ180M4，KWF107-YVPEJ200M4，KWF107-YVPEJ225M4，XDKF107-Y100M4，XDKF107-Y112M4，XDKF107-Y11KWF，XDKF107-Y132M4，XDKF107-Y15KWF，XDKF107-Y160M4，XDKF107-Y18.5KWF，XDKF107-Y180M4，XDKF107-Y200M4，XDKF107-Y225M4，XDKF107-Y22KWF，XDKF107-Y30KWF，XDKF107-Y37KWF，XDKF107-Y3KWF，XDKF107-Y45KWF，XDKF107-Y4KWF，XDKF107-Y5.5KWF，XDKF107-Y7.5KWF，XDKF107-YB100M4，XDKF107-YB112M4，XDKF107-YB132M4，XDKF107-YB160M4，XDKF107-YB180M4，XDKF107-YB200M4，XDKF107-YB225M4，XDKF107-YDP100M4，XDKF107-YDP112M4，XDKF107-YDP132M4，XDKF107-YDP160M4，XDKF107-YDP180M4，XDKF107-YDP200M4，XDKF107-YDP225M4，XDKF107-YE100M4，XDKF107-YE112M4，XDKF107-YE132M4，XDKF107-YE160M4，XDKF107-YE180M4，XDKF107-YE200M4，XDKF107-YE225M4，XDKF107-YEJ100M4，XDKF107-YEJ112M4，XDKF107-YEJ132M4，XDKF107-YEJ160M4，XDKF107-YEJ180M4，XDKF107-YEJ200M4，XDKF107-YEJ225M4，XDKF107-YEJB100M4，XDKF107-YEJB112M4，XDKF107-YEJB132M4，XDKF107-YEJB160M4，XDKF107-YEJB180M4，XDKF107-YEJB200M4，XDKF107-YEJB225M4，XDKF107-YP100M4，XDKF107-YP112M4，XDKF107-YP132M4，XDKF107-YP160M4，XDKF107-YP180M4，XDKF107-YP200M4，XDKF107-YP225M4，XDKF107-YPB100M4，XDKF107-YPB112M4，XDKF107-YPB132M4，XDKF107-YPB160M4，XDKF107-YPB180M4，XDKF107-YPB200M4，XDKF107-YPB225M4，XDKF107-YPE100M4，XDKF107-YPE112M4，XDKF107-YPE132M4，XDKF107-YPE160M4，XDKF107-YPE180M4，XDKF107-YPE200M4，XDKF107-YPE225M4，XDKF107-YS100M4，XDKF107-YS112M4，XDKF107-YS132M4，XDKF107-YS160M4，XDKF107-YS180M4，XDKF107-YS200M4，XDKF107-YS225M4，XDKF107-YVB100M4，XDKF107-YVB112M4，XDKF107-YVB132M4，XDKF107-YVB160M4，XDKF107-YVB180M4，XDKF107-YVB200M4，XDKF107-YVB225M4，XDKF107-YVP100M4，XDKF107-YVP112M4，XDKF107-YVP132M4，XDKF107-YVP160M4，XDKF107-YVP180M4，XDKF107-YVP200M4，XDKF107-YVP225M4，XDKF107-YVPEJ100M4，XDKF107-YVPEJ112M4，XDKF107-YVPEJ132M4，XDKF107-YVPEJ160M4，XDKF107-YVPEJ180M4，XDKF107-YVPEJ200M4，XDKF107-YVPEJ225M4，YQKF107-Y100M4，YQKF107-Y112M4，YQKF107-Y11KWF，YQKF107-Y132M4，YQKF107-Y15KWF，YQKF107-Y160M4，YQKF107-Y18.5KWF，YQKF107-Y180M4，YQKF107-Y200M4，YQKF107-Y225M4，YQKF107-Y22KWF，YQKF107-Y30KWF，YQKF107-Y37KWF，YQKF107-Y3KWF，YQKF107-Y45KWF，YQKF107-Y4KWF，YQKF107-Y5.5KWF，YQKF107-Y7.5KWF，YQKF107-YB100M4，YQKF107-YB112M4，YQKF107-YB132M4，YQKF107-YB160M4，YQKF107-YB180M4，YQKF107-YB200M4，YQKF107-YB225M4，YQKF107-YDP100M4，YQKF107-YDP112M4，YQKF107-YDP132M4，YQKF107-YDP160M4，YQKF107-YDP180M4，YQKF107-YDP200M4，YQKF107-YDP225M4，YQKF107-YE100M4，YQKF107-YE112M4，YQKF107-YE132M4，YQKF107-YE160M4，YQKF107-YE180M4，YQKF107-YE200M4，YQKF107-YE225M4，YQKF107-YEJ100M4，YQKF107-YEJ112M4，YQKF107-YEJ132M4，YQKF107-YEJ160M4，YQKF107-YEJ180M4，YQKF107-YEJ200M4，YQKF107-YEJ225M4，YQKF107-YEJB100M4，YQKF107-YEJB112M4，YQKF107-YEJB132M4，YQKF107-YEJB160M4，YQKF107-YEJB180M4，YQKF107-YEJB200M4，YQKF107-YEJB225M4，YQKF107-YP100M4，YQKF107-YP112M4，YQKF107-YP132M4，YQKF107-YP160M4，YQKF107-YP180M4，YQKF107-YP200M4，YQKF107-YP225M4，YQKF107-YPB100M4，YQKF107-YPB112M4，YQKF107-YPB132M4，YQKF107-YPB160M4，YQKF107-YPB180M4，YQKF107-YPB200M4，YQKF107-YPB225M4，YQKF107-YPE100M4，YQKF107-YPE112M4，YQKF107-YPE132M4，YQKF107-YPE160M4，YQKF107-YPE180M4，YQKF107-YPE200M4，YQKF107-YPE225M4，YQKF107-YS100M4，YQKF107-YS112M4，YQKF107-YS132M4，YQKF107-YS160M4，YQKF107-YS180M4，YQKF107-YS200M4，YQKF107-YS225M4，YQKF107-YVB100M4，YQKF107-YVB112M4，YQKF107-YVB132M4，YQKF107-YVB160M4，YQKF107-YVB180M4，YQKF107-YVB200M4，YQKF107-YVB225M4，YQKF107-YVP100M4，YQKF107-YVP112M4，YQKF107-YVP132M4，YQKF107-YVP160M4，YQKF107-YVP180M4，YQKF107-YVP200M4，YQKF107-YVP225M4，YQKF107-YVPEJ100M4，YQKF107-YVPEJ112M4，YQKF107-YVPEJ132M4，YQKF107-YVPEJ160M4，YQKF107-YVPEJ180M4，YQKF107-YVPEJ200M4，YQKF107-YVPEJ225M4，JCKF107-Y100M4，JCKF107-Y112M4，JCKF107-Y11KWF，JCKF107-Y132M4，JCKF107-Y15KWF，JCKF107-Y160M4，JCKF107-Y18.5KWF，JCKF107-Y180M4，JCKF107-Y200M4，JCKF107-Y225M4，JCKF107-Y22KWF，JCKF107-Y30KWF，JCKF107-Y37KWF，JCKF107-Y3KWF，JCKF107-Y45KWF，JCKF107-Y4KWF，JCKF107-Y5.5KWF，JCKF107-Y7.5KWF，JCKF107-YB100M4，JCKF107-YB112M4，JCKF107-YB132M4，JCKF107-YB160M4，JCKF107-YB180M4，JCKF107-YB200M4，JCKF107-YB225M4，JCKF107-YDP100M4，JCKF107-YDP112M4，JCKF107-YDP132M4，JCKF107-YDP160M4，JCKF107-YDP180M4，JCKF107-YDP200M4，JCKF107-YDP225M4，JCKF107-YE100M4，JCKF107-YE112M4，JCKF107-YE132M4，JCKF107-YE160M4，JCKF107-YE180M4，JCKF107-YE200M4，JCKF107-YE225M4，JCKF107-YEJ100M4，JCKF107-YEJ112M4，JCKF107-YEJ132M4，JCKF107-YEJ160M4，JCKF107-YEJ180M4，JCKF107-YEJ200M4，JCKF107-YEJ225M4，JCKF107-YEJB100M4，JCKF107-YEJB112M4，JCKF107-YEJB132M4，JCKF107-YEJB160M4，JCKF107-YEJB180M4，JCKF107-YEJB200M4，JCKF107-YEJB225M4，JCKF107-YP100M4，JCKF107-YP112M4，JCKF107-YP132M4，JCKF107-YP160M4，JCKF107-YP180M4，JCKF107-YP200M4，JCKF107-YP225M4，JCKF107-YPB100M4，JCKF107-YPB112M4，JCKF107-YPB132M4，JCKF107-YPB160M4，JCKF107-YPB180M4，JCKF107-YPB200M4，JCKF107-YPB225M4，JCKF107-YPE100M4，JCKF107-YPE112M4，JCKF107-YPE132M4，JCKF107-YPE160M4，JCKF107-YPE180M4，JCKF107-YPE200M4，JCKF107-YPE225M4，JCKF107-YS100M4，JCKF107-YS112M4，JCKF107-YS132M4，JCKF107-YS160M4，JCKF107-YS180M4，JCKF107-YS200M4，JCKF107-YS225M4，JCKF107-YVB100M4，JCKF107-YVB112M4，JCKF107-YVB132M4，JCKF107-YVB160M4，JCKF107-YVB180M4，JCKF107-YVB200M4，JCKF107-YVB225M4，JCKF107-YVP100M4，JCKF107-YVP112M4，JCKF107-YVP132M4，JCKF107-YVP160M4，JCKF107-YVP180M4，JCKF107-YVP200M4，JCKF107-YVP225M4，JCKF107-YVPEJ100M4，JCKF107-YVPEJ112M4，JCKF107-YVPEJ132M4，JCKF107-YVPEJ160M4，JCKF107-YVPEJ180M4，JCKF107-YVPEJ200M4，JCKF107-YVPEJ225M4，KF109-Y100M4，KF109-Y112M4，KF109-Y11KWF，KF109-Y132M4，KF109-Y15KWF，KF109-Y160M4，KF109-Y18.5KWF，KF109-Y180M4，KF109-Y200M4，KF109-Y225M4，KF109-Y22KWF，KF109-Y30KWF，KF109-Y37KWF，KF109-Y3KWF，KF109-Y45KWF，KF109-Y4KWF，KF109-Y5.5KWF，KF109-Y7.5KWF，KF109-YB100M4，KF109-YB112M4，KF109-YB132M4，KF109-YB160M4，KF109-YB180M4，KF109-YB200M4，KF109-YB225M4，KF109-YDP100M4，KF109-YDP112M4，KF109-YDP132M4，KF109-YDP160M4，KF109-YDP180M4，KF109-YDP200M4，KF109-YDP225M4，KF109-YE100M4，KF109-YE112M4，KF109-YE132M4，KF109-YE160M4，KF109-YE180M4，KF109-YE200M4，KF109-YE225M4，KF109-YEJ100M4，KF109-YEJ112M4，KF109-YEJ132M4，KF109-YEJ160M4，KF109-YEJ180M4，KF109-YEJ200M4，KF109-YEJ225M4，KF109-YEJB100M4，KF109-YEJB112M4，KF109-YEJB132M4，KF109-YEJB160M4，KF109-YEJB180M4，KF109-YEJB200M4，KF109-YEJB225M4，KF109-YP100M4，KF109-YP112M4，KF109-YP132M4，KF109-YP160M4，KF109-YP180M4，KF109-YP200M4，KF109-YP225M4，KF109-YPB100M4，KF109-YPB112M4，KF109-YPB132M4，KF109-YPB160M4，KF109-YPB180M4，KF109-YPB200M4，KF109-YPB225M4，KF109-YPE100M4，KF109-YPE112M4，KF109-YPE132M4，KF109-YPE160M4，KF109-YPE180M4，KF109-YPE200M4，KF109-YPE225M4，KF109-YS100M4，KF109-YS112M4，KF109-YS132M4，KF109-YS160M4，KF109-YS180M4，KF109-YS200M4，KF109-YS225M4，KF109-YVB100M4，KF109-YVB112M4，KF109-YVB132M4，KF109-YVB160M4，KF109-YVB180M4，KF109-YVB200M4，KF109-YVB225M4，KF109-YVP100M4，KF109-YVP112M4，KF109-YVP132M4，KF109-YVP160M4，KF109-YVP180M4，KF109-YVP200M4，KF109-YVP225M4，KF109-YVPEJ100M4，KF109-YVPEJ112M4，KF109-YVPEJ132M4，KF109-YVPEJ160M4，KF109-YVPEJ180M4，KF109-YVPEJ200M4，KF109-YVPEJ225M4，KF107SF80，KF107SF90，KF107SF100，KF107SF112，KF107SF115，KF107SF140，KF107SF160，KF107SF190。

KF109減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.jiohu.cn/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K109減速機
